leakage tester To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on.

Intelligent Leakage Tester uses the working principle of pressurizing samples to test the sealing strength and integrity of packaging materials. It is suitable for food and medicine packaging materials such as flexible, rigid, porous and laminated aluminum foil. There are a variety of test modes, which can comprehensively evaluate the tightness and integrity of packaging materials. It has wide applicability, complete functions and accessories,which is comply with ASTM, ISO and GB standards. At the same time, our company provides suitable accessories and services for different samples

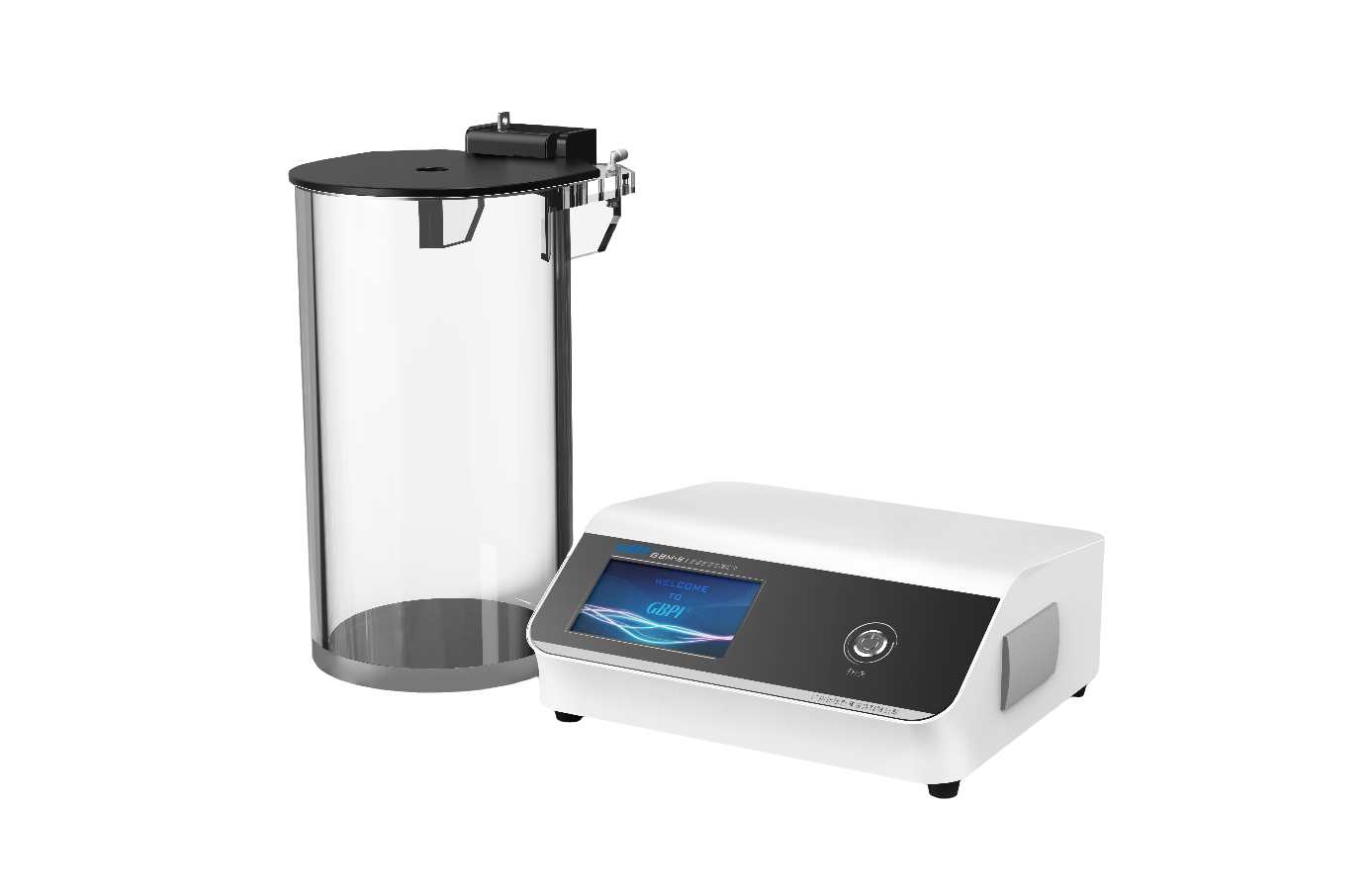

GBM‑S1 Cap Seal Integrity Tester for Bottle Caps & Easy-Open Containers GBPI GBM‑S1 Cap Seal Integrity Tester, Positive Pressure Bubble Water Bath Leak Tester Product Introduction GBM‑S1 Cap Seal Integrity Tester adopts compressed air as power source and high‑precision electronic pressure sensor for measurement. Controlled by microcomputer, it effectively tests the sealing process and sealing performance of closures, providing scientific basis for defining relevant technical requirements. It is suitable for mineral water & purified water bottle caps, beverage caps, edible oil bucket caps, seasoning caps (soy sauce, vinegar, cooking wine, etc.), easy‑open three‑piece cans (beer & beverage aluminum cans), cylindrical composite paper cans for potato chips, puffed snacks and more. Testing Principle The capped packaging container is immersed in water. Pressure is applied inside the container to make internal pressure higher than external water pressure. Keep the pressure stable for a set dwell time. Continuous emerging or overflowing bubbles indicate leakage, which is used to judge sealing performance. Technical requirement for non‑carbonated caps: no air leakage at 200 kPa, no cap detachment at 350 kPa. Executive Standards GB/T 17876‑2010 Packaging containers — Plastic tamper‑evident caps; BB/T 0025‑2004 Plastic tamper‑evident closures; GB/T 17590‑2008 Aluminum easy‑open ends for three‑piece cans; GB/T 10440‑2008 Cylindrical composite cans; YBB00162002‑2015 Aluminum ointment tubes for pharmaceutical use Technical Specifications Pressure Range 0~1 MPa Accuracy ±1%FS Hold Time 0.01s～99.99h Max Sample Size Φ150mm*330mm(H) Air Supply Pressure 0.6~0.8 Mpa Instrument Dimension 400×370×170 mm Power Supply 220V，50Hz Power 100W Weight Main unit:5kg, Water tank:15kg Product Features • Premium Components & Stable Quality. Original imported proportional valve, fast pressurization speed, ultra‑high stability, ultra‑low failure rate, high pressurization efficiency and low noise. • Fully Automatic Operating System. Set pressure and dwell time as required. The instrument automatically completes the whole test process: auto pressurization, pressure holding, auto stop and air reset. • Data Storage & Printing. Equipped with built‑in micro printer and USB data port, supporting PC software for test monitoring and data operation. • GMP Compliant Software. Designed in accordance with GMP Annex 《Computerized System》. It supports audit trail and multi‑level user permission management, satisfying pharmaceutical industry requirements for data traceability. Application Fields Suitable for non‑carbonated PET bottled beverages, canned food & non‑carbonated canned drinks, non‑carbonated glass bottles with aluminum caps, non‑carbonated glass bottles with plastic caps and other food packaging closure sealing inspection. Non-carbonated PET bottle Food can Glass bottle with aluminum cap Glass bottle with plastic cap Conclusion GBM‑S1 cap seal integrity tester is a positive pressure water immersion bubble leak tester for all kinds of bottle caps and easy‑open containers. It adopts microcomputer control and high precision pressure sensor, fully automatic test workflow, with GMP audit trail function, widely used in food, beverage and pharmaceutical packaging closure quality control. Get Quotation for This Unit GBPI Packaging Test Equipment ManufacturerAddress: No.3 Linjiang Road, Xiagang Subdistrict, Huangpu District, Guangzhou, Guangdong, ChinaTel: +86 15820231129 | Official Website: www.gbpitester.com

Electronic Leakage Tester applies to test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on

GBPI Electronic Leakage Tester Application: To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on.

GBM-L1 Vacuum Decay Leak Detection Tester is used to perform micro leakage detection on finished packaging by vacuum decay method. It is suitable for leak detection for the integrity of various packaging containers and applied to ampoules, vials, HDPE bottles, prefilled needles and other pharmaceutical packaging, food packaging, and chemical industry packaging. It is advantageous in its’ non-destructive, non-damage and sample-free preparing characters.

The Leakage tester GB-M2 is designed and manufactured in accordance with the relevant provisions of GB/T15171 Test method for leaks in sealed flexible packages. It is used to detect the sealing condition of plastic packaging bags and containers, and it is applied to used in industries of food, beverage, pharmaceuticals, personal care and so on. Through test can effectively compare and evaluate the sealing technology and sealing performance of packaging parts, and provide scientific basis for determining the relevant technical indicators. It can also be used to test the sealing performance of the specimens after dropping and compressing test.





Test Principle Firstly submerge the specimen in the water in the vacuum chamber, and then evacuate the vacuum chamber to form differential pressure between the inside and outside of specimen. The seal property can be obtained by observing the steady progression of bubbles from the specimen or observing how the specimen expands and restores to its original shape after vacuum release.

 GBM-D1 intelligent sealing performance tester uses the working principle of pressurizing the sample to test the sealing strength and integrity of packaging materials. It is suitable for food and medicine packaging materials such as flexible, rigid, porous and laminated aluminum foil. There are multiple test modes for comprehensive evaluation of the tightness and integrity of packaging materials. Wide applicability, complete functions and accessories, in line with applicable ASTM, ISO and GB standards. At the same time, our company provides matching accessories and services for different samples.

  Infrared method water vapor transmission rate tester W405L is a high-end precision packaging material testing instrument, newly developed and upgraded by GBPI Research and Development Team based on ASTM, GB standard requirements and market demand. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. It is suitable for the water vapor transmission rate performance test of films, sheets, papers, packages and various materials in the fields of food, medicine, medical equipment, daily chemistry, photovoltaic electronics, etc.
