Vacuum Decay Leak Detection Tester Package Leaking Test Machine Seal Integrity Testing Equipment

leakage tester To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on.

Intelligent Leakage Tester uses the working principle of pressurizing samples to test the sealing strength and integrity of packaging materials. It is suitable for food and medicine packaging materials such as flexible, rigid, porous and laminated aluminum foil. There are a variety of test modes, which can comprehensively evaluate the tightness and integrity of packaging materials. It has wide applicability, complete functions and accessories,which is comply with ASTM, ISO and GB standards. At the same time, our company provides suitable accessories and services for different samples

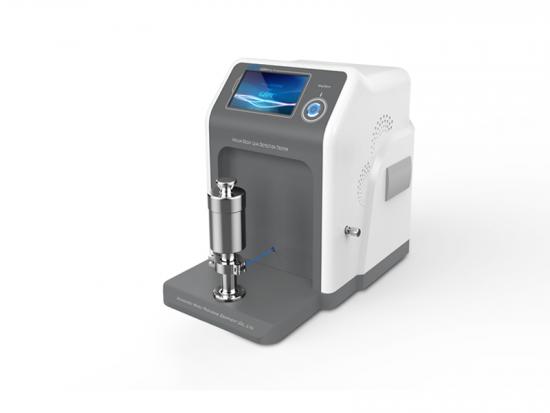

Introduction AUTO GBM-L2 Dual-Pressure Methods Vacuum Decay Leak Detection Tester adopts the test principle of vacuum decay method/pressure decay to detect micro-leakage of finished packaging. It can be applied to packaging systems composed of vials, ampoules, Leakage detection of pre-filled needles, eye drop bottles, HDPE bottles, infusion bottles/bags and other pharmaceutical packaging, food packaging, and chemical industry packaging.   Test principle The host is connected to a sealed test chamber customized according to the sample. When performing the vacuum decay method test, the instrument evacuates the test chamber, and a pressure difference is formed inside and outside the sample. Under the action of the pressure, the gas/liquid in the sample enters the test chamber through the leak hole. The main engine uses the absolute pressure sensor and the differential pressure sensor to monitor the pressure change in the chamber to judge whether the sample leaks. When performing the pressure decay method test, the instrument fills the test chamber with a predetermined air pressure, and the gas in the test chamber enters the sample through the leak hole. The host uses absolute pressure sensors and differential pressure sensors to monitor the pressure changes in the chamber to determine whether the sample is leaking.   Standard ASTM F2338-2009(2013),  YY-T 0681.18-2020,  USP<1207.2>, ASTM F2095   Specification Item Technical Parameters Absolute pressure test range (0~300) kPa Differential pressure test range (-2~2) kPa Detection sensitivity 1～3 μm Balance/Test Time 1～3600 s Vacuum time 1～3600 s Set flow rate 0～3 mL/min Test system Dual Sensor Technology / Dual Cycle Test Test chamber  Customized according to samples Suitable for Vials, ampoules, prefilled needles, infusion bottles/bags, etc. Detection principle Vacuum Decay Method/ Pressure Decay Method Host size 495 mm*455 mm*280 mm Ambient temperature 20℃~30℃ Relative humidity Max 80%，no condensation Working power AC 220V, 50HZ   Features u Dual-Pressure Methods, to help solve testing difficulties The double combination of vacuum decay method and pressure decay method solves the problem of easy misjudgment and false negative for freeze-dried powder injections containing vacuum in the bottle using a single vacuum decay method. Based on dual-sensor and dual-circulation system technology, high-quality absolute pressure sensor and differential pressure sensor, with an accuracy of 0.1% FS, can effectively detect large and small leaks, accurately calculate the leak hole diameter, and give a pass or fail judgment.   The instrument has low sensitivity and good test repeatability For rigid samples, the detection sensitivity is as low as 1 μm, and the test repeatability is as low as 0.8%. The instrument has stable performance, low noise and good repeatability. u Imported brand accessories, excellent performance Imported brand vacuum pump, pumping rate up to 3 L/s, noise as low as 50 DB, high ultimate vacuum, convenient oil level detection and replacement. The imported gas mass flow controller can simulate micro-leaks arbitrarily, with a resolution of 0.001 mL/min, which provides a reliable guarantee for the method verification of instrument sensitivity. u Large size touch screen, intelligent operation Color 7-inch touch screen, clear view, sensitive touch, easy to operate. Equipped with a micro-printer, USB data interface, and supports PC software measurement and control operation. The test software is designed according to the GMP appendix "Computerized System". It has an audit trail function and multi-level authority settings for users, which can meet the needs of the pharmaceutical industry for data traceability. u Personalized customization to meet the needs of different samples For different test samples, it supports customization of suitable test chambers to meet the needs of different tests. For the same type of samples, it supports customized nesting mode, which can realize the sharing of a test chamber for samples of various specifications.   Application       Freeze-dried powder injection Injection Prefill needle       Eye drops Plastic Ampoule BFS Infusion bags   Factory configuration Standard Host machine, vacuum pump, test chamber and 3 sets of yin and yang control (customized as required), 11-inch touch panel, professional software (GMP) Optional Imported gas flow meters, air compressors, printers, calibration certificates

Electronic Leakage Tester applies to test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on

GBPI Electronic Leakage Tester Application: To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on.

The Leakage tester GB-M2 is designed and manufactured in accordance with the relevant provisions of GB/T15171 Test method for leaks in sealed flexible packages. It is used to detect the sealing condition of plastic packaging bags and containers, and it is applied to used in industries of food, beverage, pharmaceuticals, personal care and so on. Through test can effectively compare and evaluate the sealing technology and sealing performance of packaging parts, and provide scientific basis for determining the relevant technical indicators. It can also be used to test the sealing performance of the specimens after dropping and compressing test.

Test Principle Firstly submerge the specimen in the water in the vacuum chamber, and then evacuate the vacuum chamber to form differential pressure between the inside and outside of specimen. The seal property can be obtained by observing the steady progression of bubbles from the specimen or observing how the specimen expands and restores to its original shape after vacuum release.

AUTO GBM-D1 intelligent sealing performance tester uses the working principle of pressurizing the sample to test the sealing strength and integrity of packaging materials. It is suitable for food and medicine packaging materials such as flexible, rigid, porous and laminated aluminum foil. There are multiple test modes for comprehensive evaluation of the tightness and integrity of packaging materials. Wide applicability, complete functions and accessories, in line with applicable ASTM, ISO and GB standards. At the same time, our company provides matching accessories and services for different samples.

This machine is used to test the compression, deformation resistance and stacking of corrugated carton, honeycomb board box and so on.

W401 2.0 water vapor transmission rate tester is designed and manufactured according to GB/T 26253 and ASTM F1249 standards, based on the testing principle of infrared method, it provides wide range and high efficiency water vapor transmission rate test for high, medium and low barrier materials is suitable for water vapor transmission performance testing of films, sheets, paper, packaging and other related materials in the fields of food, medicine, medical equipment, daily chemistry, photovoltaic electronics, etc. It is an ideal configuration instrument for off-line or on-line testing of the barrier properties of packaging materials for production units in the packaging industr

Product introduction The GTR-10H gas permeation analysis system consists of a differential pressure permeation device and a gas chromatograph. It can test and analyze the gas permeability of various single-component gases and mixed gases, and can accurately calculate the permeability, permeability coefficient and other parameters of each component gas. The test gas has a wide range of types and high accuracy, and is suitable for gas permeation testing in the fields of fuel cell proton exchange membrane gas permeability testing, hydrogen permeation of hydrogen storage materials, gas density of bipolar plate materials, and natural gas storage materials.   Test principle Place the processed sample between the high-pressure chamber and the low-pressure chamber, and the low-pressure chamber is connected to the gas chromatograph through a quantitative loop. At the set test temperature, use a vacuum pump to evacuate the gas system, and then add a certain pressure of test gas to the upper chamber to form a constant pressure difference between the upper and lower chambers. Under the action of the pressure gradient, the gas penetrates from the high-pressure chamber to the low-pressure chamber through the film. The system injects the gas that penetrates into the low-pressure chamber into the gas chromatography column and separates it into various components, and calculates the gas permeability, gas permeability coefficient and other barrier performance parameters of each component.   Standard GB/T 20042.3，GB/T 20042.6-2011，GB/T 1038.1-2022，ISO 15105-1   Specification Item Technical Parameters Test range 2.0×10-12~3.0×10-7 mol/(m2·s.Pa) Detection system Gas chromatography (GC), TCD detector Test gas Gases such as hydrogen, oxygen, nitrogen, carbon dioxide, carbon monoxide, methane, etc., single component or mixed component Gas pressure 0~300kPa Permeation module temperature control range 15~60℃ Temperature control accuracy ±0.1℃ Permeation area 50.24 cm2 Sample size Φ110 mm Sample thickness ≤2 mm Sample quantity 1 piece Power supply AC 220 V，50 Hz   Features Advanced gas chromatography analysis technology The instrument is equipped with an advanced gas chromatography analysis module and a new microcomputer temperature control system, which can achieve 16-step program temperature rise with high temperature control accuracy; it adopts multi-processor parallel working mode, and can be equipped with a variety of high-performance detectors. The instrument is stable and reliable, equipped with a 7-inch color LCD touch screen and a dedicated workstation, which is convenient to operate and easy to process data.   Fully automatic precision control of permeation module test temperature The permeation module uses semiconductor refrigeration chips to automatically control the temperature in both directions, with higher temperature control accuracy, up to 0.1℃.   Can test the permeability of single gas and mixed gas It can measure the permeability of a single gas and the permeability of different mixed gases at the same time, and has a wide range of uses. In addition to its application in the traditional packaging industry, it has broad application prospects in new energy fields such as hydrogen energy.   Intelligent operating system, global certification Self-developed intelligent operating system, modular graphics, flexible setting of test process parameters, and intuitive and convenient operation. Designed according to the GMP Appendix "Computerized System", it has an audit tracking function and multi-level user authority settings, which can meet the needs of the pharmaceutical industry for data traceability. Personalized test reports are set on demand, supporting data output in multiple formats, electronic signatures, and online submission of audit reports.   Laboratory Intelligent IoT Platform The instrument can be connected to the IoT platform to achieve digital network management. Remote authorization to log in to the IoT platform can achieve functions such as managing experimental data, remote diagnosis and troubleshooting. Customers can download the required instrument information, documents, and operation videos on the platform.

Box Compression Tester mainly used in various types of corrugated box and packing box. It is the basic instrument for corrugated carton such as small and medium-sized packing box of the compression strength performance test. The various performance parameters and technical indicators is in line with ISO2872 The Package – Complete and Full Transport Package- Compression Test ", ISO2874 The Package – Complete and Full Transport Package-Stacking Test using pressure testing machine "
