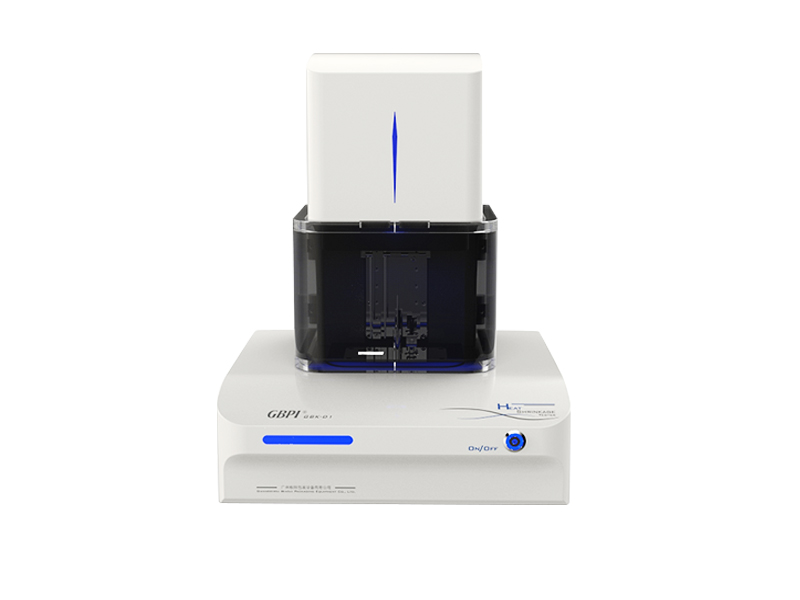

GBK-D1 DIN 53369-1976 Pet Film Heat Shrinkage Tester Thermal Shrinkage Tester For Plastic/PVC /OPS Film

GBK-1 Heat Shrinkage Tester is for testing the heating shrinkage of packaging films submerged in liquid in different temperatures.

The coefficient of friction tester is used to test the coefficient of frictionof plastic film, thin sheet, paper and so on, widely used in packaging industry, film-making companies and packaging material inspection agencies.

Introduction Based on the test principle of the differential pressure method, N530 is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.

The popular single-guidance electronic tensile testing machine GBL-H is a mechanical property testing machine developed and manufactured by the Guangzhou Biaoji R&D team based on GB, JIS, ASTM and other standard requirements and market demands. The instrument adopts high-precision sensors, and the force measurement accuracy is within ±1 %FS; professional software support, fully automatic operation, equipped with liquid crystal display screen, real-time display of test curve data and query test report, convenient and fast testing; Choose built-in or external, with perfect limit protection, overload protection, emergency stop and other safety protection functions.

Automatic High Precision Digital Thickness Meter is a high precise thickness meter integrating optics, mechanology , electronics and algorithm. Easy to operate. Test results are displayed digitally. And can connect to computer for automatic control.

Introduction It is used to determine the MFR & MVR value of the melt flow rate through the standard die every 10 minutes when various plastics and gums pass through a certain temperature and load in a viscous flow state. It is suitable for melting high temperature polycarbonate, polysulfoxide, fluorine plastics, nylon and other engineering plastics. Also, it is appropriate for the polyformaldehyde, polystrene, polypropylene, ABS resin polyformaldehyde, polycarbonate resin and other low temperature plastic melting test. The machine is widely used in plastic production, plastic products, petrochemical and other industries as well as related universities, scientific research units and commodity inspection departments.

Introduction AUTO GBM-L2 Dual-Pressure Methods Vacuum Decay Leak Detection Tester adopts the test principle of vacuum decay method/pressure decay to detect micro-leakage of finished packaging. It can be applied to packaging systems composed of vials, ampoules, Leakage detection of pre-filled needles, eye drop bottles, HDPE bottles, infusion bottles/bags and other pharmaceutical packaging, food packaging, and chemical industry packaging. Test principle The host is connected to a sealed test chamber customized according to the sample. When performing the vacuum decay method test, the instrument evacuates the test chamber, and a pressure difference is formed inside and outside the sample. Under the action of the pressure, the gas/liquid in the sample enters the test chamber through the leak hole. The main engine uses the absolute pressure sensor and the differential pressure sensor to monitor the pressure change in the chamber to judge whether the sample leaks. When performing the pressure decay method test, the instrument fills the test chamber with a predetermined air pressure, and the gas in the test chamber enters the sample through the leak hole. The host uses absolute pressure sensors and differential pressure sensors to monitor the pressure changes in the chamber to determine whether the sample is leaking. Standard ASTM F2338-2009(2013),  YY-T 0681.18-2020,  USP<1207.2>, ASTM F2095 Specification Item Technical Parameters Absolute pressure test range (0~300) kPa Differential pressure test range (-2~2) kPa Detection sensitivity 1～3 μm Balance/Test Time 1～3600 s Vacuum time 1～3600 s Set flow rate 0～3 mL/min Test system Dual Sensor Technology / Dual Cycle Test Test chamber  Customized according to samples Suitable for Vials, ampoules, prefilled needles, infusion bottles/bags, etc. Detection principle Vacuum Decay Method/ Pressure Decay Method Host size 495 mm*455 mm*280 mm Ambient temperature 20℃~30℃ Relative humidity Max 80%，no condensation Working power AC 220V, 50HZ   Features u Dual-Pressure Methods, to help solve testing difficulties The double combination of vacuum decay method and pressure decay method solves the problem of easy misjudgment and false negative for freeze-dried powder injections containing vacuum in the bottle using a single vacuum decay method. Based on dual-sensor and dual-circulation system technology, high-quality absolute pressure sensor and differential pressure sensor, with an accuracy of 0.1% FS, can effectively detect large and small leaks, accurately calculate the leak hole diameter, and give a pass or fail judgment.   u The instrument has low sensitivity and good test repeatability For rigid samples, the detection sensitivity is as low as 1 μm, and the test repeatability is as low as 0.8%. The instrument has stable performance, low noise and good repeatability. u Imported brand accessories, excellent performance Imported brand vacuum pump, pumping rate up to 3 L/s, noise as low as 50 DB, high ultimate vacuum, convenient oil level detection and replacement. The imported gas mass flow controller can simulate micro-leaks arbitrarily, with a resolution of 0.001 mL/min, which provides a reliable guarantee for the method verification of instrument sensitivity. u Large size touch screen, intelligent operation Color 7-inch touch screen, clear view, sensitive touch, easy to operate. Equipped with a micro-printer, USB data interface, and supports PC software measurement and control operation. The test software is designed according to the GMP appendix "Computerized System". It has an audit trail function and multi-level authority settings for users, which can meet the needs of the pharmaceutical industry for data traceability. u Personalized customization to meet the needs of different samples For different test samples, it supports customization of suitable test chambers to meet the needs of different tests. For the same type of samples, it supports customized nesting mode, which can realize the sharing of a test chamber for samples of various specifications.   Application       Freeze-dried powder injection Injection Prefill needle       Eye drops Plastic Ampoule BFS Infusion bags   Factory configuration Standard Host machine, vacuum pump, test chamber and 3 sets of yin and yang control (customized as required), 11-inch touch panel, professional software (GMP) Optional Imported gas flow meters, air compressors, printers, calibration certificates

LC-1 Tensile Test Sample Cutter cuts samples of plastic film, paper and so on in preparation for other tests, such as tensile, peeling, tearing and heat sealing etc. It is compactly structured and easy to use. The edges of sample cut out are even and smooth.

1.Function It’s widely used in rubber products, magnetic materials, circuit boards, muti-layer circuit boards, IC, LCD, electronics and other products sealing performance testing. 2.Characteristics 1) The imported double-temperature structure with high temperature resistant solenoid valve is used to minimize the failure rate. 2) Independent steam generation chamber to avoid direct impact of steam on the product, so as not to cause partial damage to the product. 3) The door lock labor-saving structure solves the shortcomings of the locking difficulty of the first-generation product disc handle. 4) Cool air before the test; the design of the exhaust air in the test (air discharge in the test barrel) improves the pressure stability and reproduction. 5) Ultra long-term experimental running time up to 400 hours. 6) Water level protection, through the test room water level Sensor to detect protection. 7) Tank with anti-pressure design, the box body with pressure (150 ° C) up to 2.65kg, in line with the water pressure test of 6kg. 8) Two-stage pressure safety protection device, adopting two-stage combined controller and mechanical pressure protection device. 9) Safety protection pressure button, two-stage automatic pressure button for emergency safety device. 10) Bias test terminal withstand voltage up to 3000V (optional) 11) USB for exporting the history data, curve. 3.Technical parameters 1)Temperature range: +100°C～+132°C (Saturated vapor temperature) 2)Humidity Range: 100% steam Humidity 3)Humidity Control Stability: ±1%RH 4)Working pressure: 1.2~2.89kg/cm2 (including 1atm) 5)Time Range: 0 Hr to 999 Hr 6)Pressurization time: 0.00 Kg ~ 1.04 Kg/cm2 about 45 minutes 4.Material of chamber 1)Test chamber size:∮300 mm x L500 mm; 2)Overall size: W900x D900 x H1400 mm; 3)Inner barrel material: Stainless steel plate material (SUS# 316, 3mm); 4)Outer barrel material: stainless steel plate material or spray plastic; 5)Insulation material: rock wool and hard polyurethane foam insulation 6)Steam chamber heating tube: Titanium tube is heated and never rusts. 7)Control System: Taiwan-made Delta color touch PLC to control humidity and steam temperature (using PT-100 Platinum temperature sensor). (Imported large-screen touch controller) 5.Mechanical structure 1)Round inner box, stainless steel round test inner box structure, in line with industrial safety container standards, can prevent dew condensation design during test. 2)Round lining, stainless steel circular lining design, can avoid direct impact of vapor latent heat on the sample. 3)Precision design, good air tightness, low water consumption, and can be operated continuously for 400Hrs every time. 4)The patented packing design makes the door and the box more tightly combined, which is completely different from the traditional extrusion type, and can extend the packing life. 5)Critical point LIMIT mode automatic safety protection, abnormal cause and fault indicator display. 6)Security Protection: a)Imported high temperature sealed solenoid valve adopts double circuit structure to ensure no leakage of pressure. b)The whole machine is equipped with over-pressure protection, over-temperature protection, one-button pressure relief, manual pressure relief and multiple safety guarantee devices to ensure users to the greatest extent. c)Use and safety. d)Back pressure door lock device, the test box door cannot be opened when there is pressure inside the test chamber. 6.Other accessories. 1)Test rack 1 group 2)Sample tray   7.Ambient environment & Facilities. 1)It can be allowed to use the working environment temperature 5 ° C ~ 30 ° C; experimental water: pure water or distilled water 2)System power fluctuations should not be greater than ± 10, 220V 20A.

Didital thickness tester is used to make thickness measuring or comparative measuring of plastic film, thin sheet, paper and so on.

Product Description The LC-2 Sample Cutter is used for cutting samples of various plastic films, paper and other materials prior to stretching, peeling and heat sealing tests. It is easy and efficient to operate and can accurately cut samples of standard required sizes. Features Meets the sample making requirements for Type 2 specimens of standard GB/T 1040.3. Using imported tungsten steel finely ground special blades, sharp and durable, with hardness up to 92 HRA. Accurate sample size, no damage, smooth and burr-free edges. Spring tensioned for easy sample fixing and smooth sample cutting. The ability to cut up to 12 samples in a single pass allows for efficient production of large batches of samples. Safety protection, the outer layer of the blade is covered with an aricotta stopper so that the blade does not come into direct contact with it. Different sample widths can be ordered to suit the requirements of each customer.   Specifications Item Specifications  Cut size 15 mm×210 mm（Optional width） Number of samples 12 pcs（Single Layer） Sample thickness ≤ 200 μm Product size 250 mm×350 mm×248 mm Weight 11 kg

This sealing/filling/capping machine(Packaging Machine/Packaging Machinery)is applicable for Fruit Juice/Salt /Sanitizing Gel/Skin Care/Sugar Powder/Tomato Sauce/ Ketchup/ Detergents Soap Packing in form of top/corner spout pouch or top/corner spout stand up pouch, 3-side sealing bags, and doypacks.
