Dual-channel Spout Heat Sealing Machine

  • Brand:

    GBPI
  • Item NO.:

    GF-2700XB
Inquiry now
Product Detail



GF-2700XB Dual-channel Linear Oblique Tube Sealing Machine

Product Introduction

The fully automatic dual-channel linear oblique tube sealing machine is professionally used for automatic tube sleeving and heat sealing of straws and bags. It is suitable for straws of various calibers, lengths and models. It is the preferred automated equipment for packaging bags such as laundry detergent spout oblique bags, beverage & juice oblique spout bags, engine oil & edible oil oblique spout bags, and outdoor foldable water oblique bags.

Technical Parameters

Overall Dimension Main unit: 4790mm×4800mm×1800mm; Collecting conveyor: 2015mm×510mm×930mm (L × W × H)
Sealing Type Stand-up bag, three-side sealed bag, gusset bag, special-shaped bag
Material Type Bag: Inner PE, Inner PP material
Spout: PE, PP material
Product Specification Oblique sealed bag: Length 150~350 mm, Width 130~250 mm, Sealing length 60~120 mm
Center sealed bag: Length 150~350 mm, Width 130~200 mm, Sealing length 60~120 mm
Spout caliber: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc.
Working Speed 80~90 pcs/min for dual channel; 40~45 pcs/min for single channel
Positioning Accuracy ≤±1 mm
Sealing Cutter Group Single side: 7 groups in total (4 heat sealing groups, 1 cooling group, 2 preheating groups)
Two sides total 14 groups (8 heat sealing groups, 2 cooling groups, 4 preheating groups)
Temperature Control Module & Heating Temperature 4 sets (2 sets of 4-channel modules + 2 sets of 8-channel modules), accuracy ±0.1℃; Heating temperature range: 0~300℃
Power Supply 380V/50Hz, rated power approx. 17KW, current approx. 40A
Air Source 0.5~0.7MPa, 1200L/min
Equipment Weight Approx. 4700 kg

Product Features

  • Adopts dual-channel mode, fully automatic operation of bag separating, angle cutting, tube loading and heat sealing procedures;
  • Equipped with PLC control and intelligent parameter setting, parameters can be quickly set according to different bag types and straws, simple operation;
  • Adopts imported temperature control modules and pneumatic components such as SMC, Festo and Airtac with reliable quality;
  • Designed with step-by-step heating and final cooling sealing process to achieve excellent sealing effect;
  • Automatic fault detection, alarm, stop, diagnosis and fault location display;
  • Light weight, small floor space and stable performance;
  • Main components are made of aluminum alloy and stainless steel, complying with food and pharmaceutical GMP environmental hygiene requirements.

System Composition

  • The equipment adopts dual-channel design, consisting of bag feeding system, tube feeding system, cutting mechanism, heat sealing system, bag collecting system, control system and machine base;
  • The bag feeding system is composed of bag separating mechanism, positioning mechanism and handling mechanism; the separating mechanism separates finished bags one by one, the handling mechanism transports bags, and the positioning mechanism corrects position;
  • The tube feeding system includes vibration plate, linear vibration feeding and rotary tube loading mechanism; automatic detection and start-stop control during feeding;
  • The heat sealing system includes heat sealing and cooling, with 5 sets of heat sealing knives and 1 set of cooling knives; customized heat sealing and cooling knives of different specifications are available to adapt to straw sealing of various sizes;
  • Each set of sealing knives has independent temperature control, which can set temperature and operate debugging independently;
  • The bag collecting system conveys at constant speed and arranges bags automatically, convenient for product observation and inspection;
  • The operation interface real-time displays working status such as production speed, finished quantity, shift output, date and temperature.

Application Fields

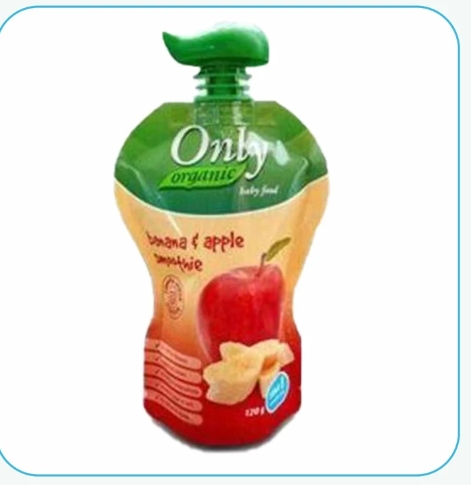

Laundry Detergent Stand-up Bag

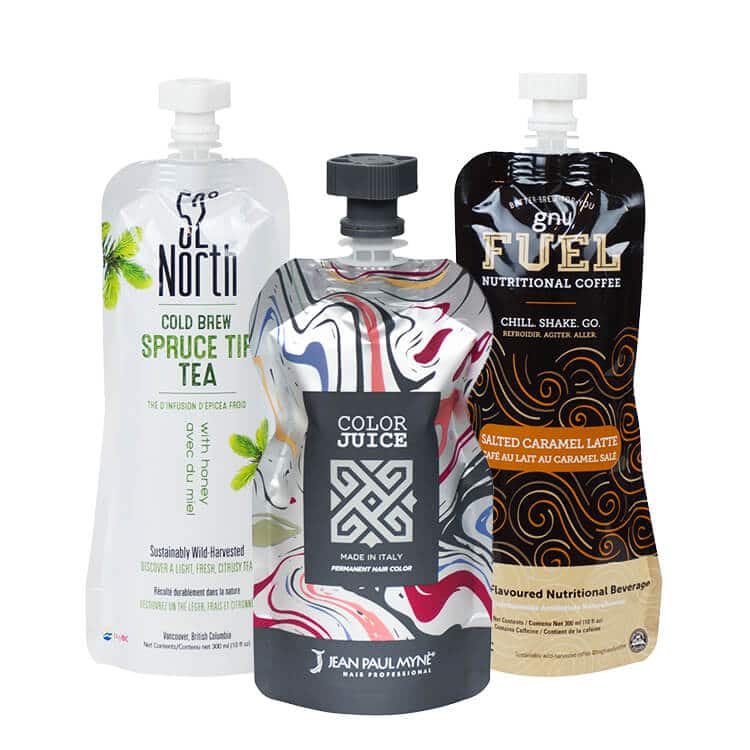

Seasoning Stand-up Bag

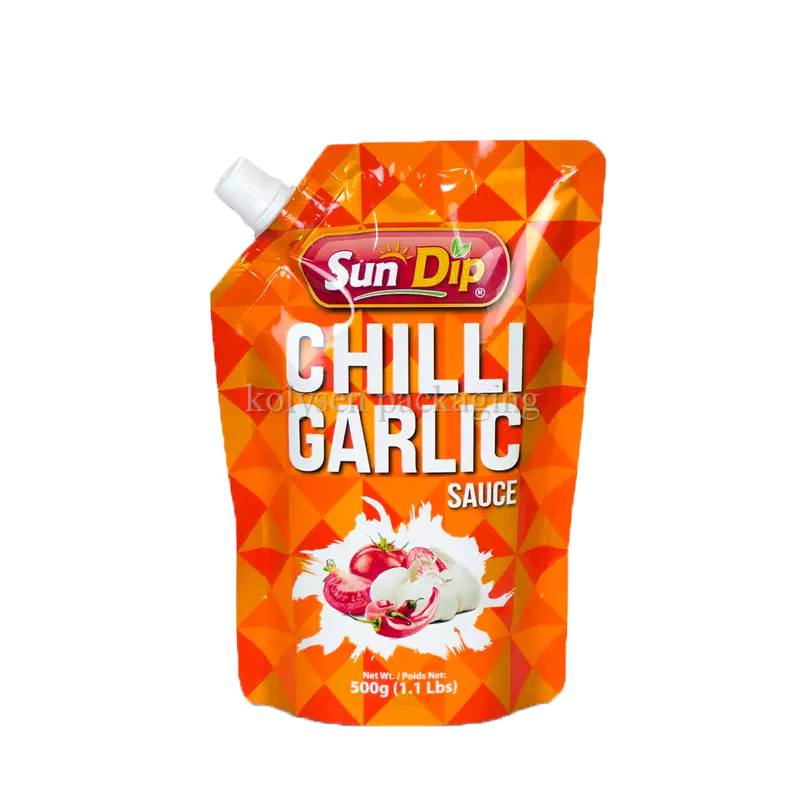

Juice Stand-up Bag
Foldable Water Bag
Laundry Detergent Stand-up Bag
Seasoning Stand-up Bag
Juice Stand-up Bag
Foldable Water Bag
