Spout Insert and Sealing Machine

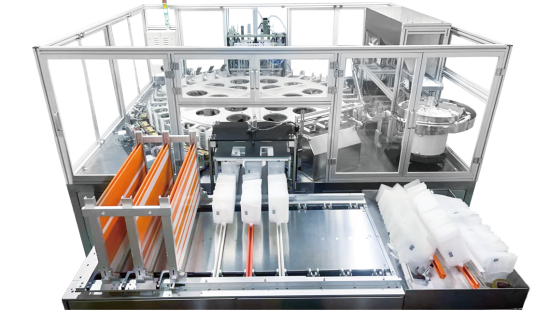

GF-2200Z Two-Station Rotary Tube Sealing Machine
Product Introduction
The fully automatic two-station rotary tube sealing machine is specially designed for automatic tube sleeving and heat sealing of straws and bags. It is applicable to straws of various calibers, lengths and models. It is the preferred automatic equipment for spout stand-up bags such as beverage packaging, suckable jelly, condiments and daily chemical products (laundry detergent, skin care products). It can be customized to connect with filling production lines for integrated operation.
Technical Parameters
Overall Dimension
2900mm x 2400mm x 2000mm (L × W × H)
Sealing Type
Stand-up bag, three-side sealed bag, gusset bag, special-shaped bag (customized)
Material Type
Bag: Inner PE, Inner PP materialTube: PE, PP material
Product Specification
Bag Length: 100~180mm, Width: 70~120mm, Sealing Length: 60~120mmStraw Caliber: 8.5mm (other sizes customizable)
Working Speed
80-90 pcs/min (varies with different materials and bag sizes)
Positioning Accuracy
≤±0.5 mm
Sealing Cutter Group
6 groups in total: 1 preheating group, 4 heat sealing groups, 1 cooling group
Temperature Control Module
2 sets (12-channel module), accuracy ±0.1℃
Heating Temperature
Room Temperature ~ 300℃
Power Supply
380V/50Hz, 13KW
Air Source
0.6~0.8MPa, 11L/min
Equipment Weight
2000Kg
Product Features
The tube sealing machine adopts two-station design, with fully automatic operation of preheating, bag separating, tube loading and heat sealing processes;
Sealed products are automatically sent to the transition machine, convenient for connecting and docking with subsequent production equipment;
Adopts PLC control and intelligent parameter setting; parameters can be quickly configured according to different bag types and straws, easy operation;
Equipped with imported temperature control modules and pneumatic components such as SMC, Festo and Airtac with stable and reliable quality;
Adopts step-by-step heating and final cooling sealing process design to achieve perfect sealing performance;
Automatic fault detection, alarm, shutdown, diagnosis and real-time fault location display;
Light overall weight, small floor occupation and stable long-term operation performance;
Main components are made of aluminum alloy and stainless steel, complying with food and pharmaceutical GMP environmental hygiene standards.
System Composition
The machine adopts dual-station structure, consisting of bag feeding system, tube feeding system, heat sealing system, bag dropping system, rejecting mechanism, transition machine, control system and machine base;
The bag feeding system includes bag placing & positioning mechanism, bag picking mechanism and bag sleeving mechanism; the bag picking mechanism takes out finished bags one by one, and the bag sleeving mechanism loads bags into the bag holder and sleeves onto the straw;
The tube feeding system is composed of vibration plate and transition trough mechanism; automatic detection and start-stop control during feeding process;
The heat sealing system includes preheating, heat sealing and cooling, including 1 set of preheating cutter, 4 sets of heat sealing cutters and 1 set of cooling cutter; customized sealing and cooling cutters are available to adapt to straws of different specifications;
Each group of sealing cutters supports independent temperature control, separate temperature setting and independent operation debugging;
The bag collecting system consists of discharging mechanism and trough changing mechanism; sealed bags are discharged to the middle position, then pushed into the material trough; empty trough replacement is automatic when full;
The operation interface real-time displays working status, including production speed, finished product quantity, shift output, date and temperature parameters.
Application Fields
Jelly Spout Bag
Soymilk Spout Bag
Care Products Bag
Puree Bag
Special-shaped Spout Bag
Foldable Outdoor Water Bag
