Pendulum Impact Tester-GBG-L2


Introduction

Designed and manufactured according tostandards likeGB/T 8809、ASTM D3420, GBG-L2 Pendulum Impact Tester is suitable for determining pendulum impact resistance of the film materials,composite film,metallic foil and so on. The machine can be used in scientific research, teaching, industrial and mining enterprises, laboratory, research institute and quality supervision department.


  • Brand:

    GBPI
  • Item NO.:

    GBG-L2
  • Product Origin:

    Guangzhou,China
Inquiry now
Product Detail

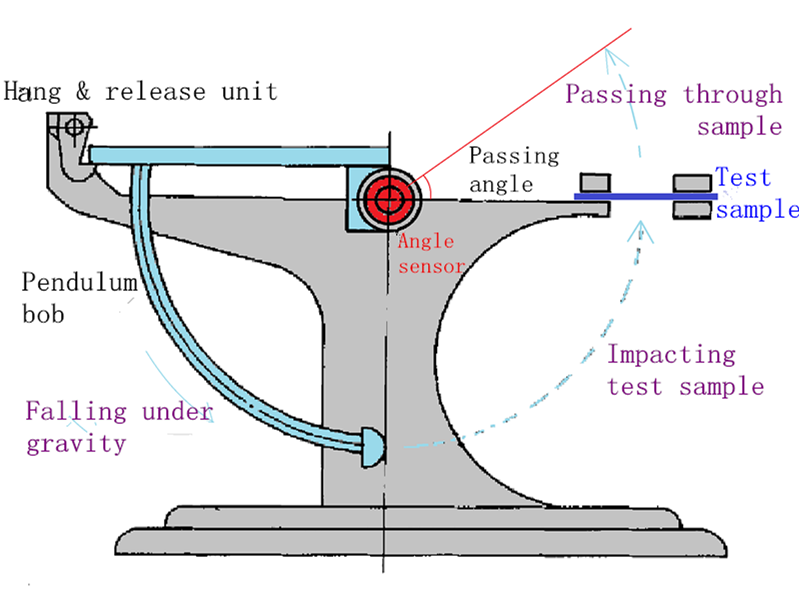

Testing Principle

Through the impact head of semi globe shape, the instrument impacts and breaks through the sample with certain ram speed so as to measure the consumptive energy of the impact head, and use the energy to estimate the energy value of pendulum impact resistance of the film sample.


Standards

GB/T 8809、ASTM D3420、GB/T 21189

Pendulum Impact Tester

Specification

Item

Technical Parameters

Maximum impact energy

5 J8J optional

Test precision

0.001 J

Pendulum angle

90°

Pendulum swing radius

285 mm

Size of impact head

Φ19 mm,Φ25.4 mm

Size of clips

Φ60 mm,Φ89 mm

Size of test sample

100 mm×100 mm

Instrument size

773 mm×378 mm×606 mm

Power

75 W

Power supply

AC 220 V,50 Hz


Features

 Electronic measurement, test accuracy up to 0.001 J, strictly ensure the accuracy of experimental results.

 The host machine is equipped with color touch screen, which is convenient for users to conduct test operation and view data

 The sample is pneumatically clamped, the pendulum is pneumatically released, and equipped with a horizontal adjustment auxiliary system to effectively avoid human error

 The range is adjustable, and electronic measurement enables easy and accurate testing under various test conditions

 The system automatically statistics the test data and presents the test results to the user visually

Application



Film

It is suitable for testing the resistance of plastic film, thin film and composite film to pendulum impact. Such as food and drug packaging bags with PE/PP composite film, aluminum plating film, aluminum plastic composite film, nylon film, etc



Paper,sheet testing

It is suitable for testing the impact resistance of paper and paperboard, such as aluminized paper for cigarette packaging and aluminum-plastic paper composite material for Tetra Pak packaging.
