Oxygen Permeability Analyzer - Coulometric Sensor Method

This product is based on the testing principle of the coulometric sensor method testing Oxygen, and is designed and manufactured with reference to ASTM D3985 and other standards. Adopting high-precision imported oxygen sensor, high test accuracy,it is suitable for oxygen transmission performance testing of films, sheets, paper, packaging and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc., and provides a wide range and high-efficiency oxygen transmission rate detection for high, medium and low oxygen barrier materials.

  • Brand:

    GBPI
  • Item NO.:

    Y110 2.0
Inquiry now
Product Detail

Testing Principle

Y110 2.0 Oxygen Transmission Rate Tester adopts the principle of Coulometric sensor method. The pre-processed sample is fixed in the middle of the test chamber, while high-purity oxygen flows in the upper chamber of the film, high-purity nitrogen (carrier gas) flows in the lower chamber, oxygen molecules diffuse through the film to the nitrogen on the other side, and the flowing nitrogen gas is carried to the sensor, and the oxygen transmission rate is calculated by analyzing the oxygen concentration measured by the sensor.

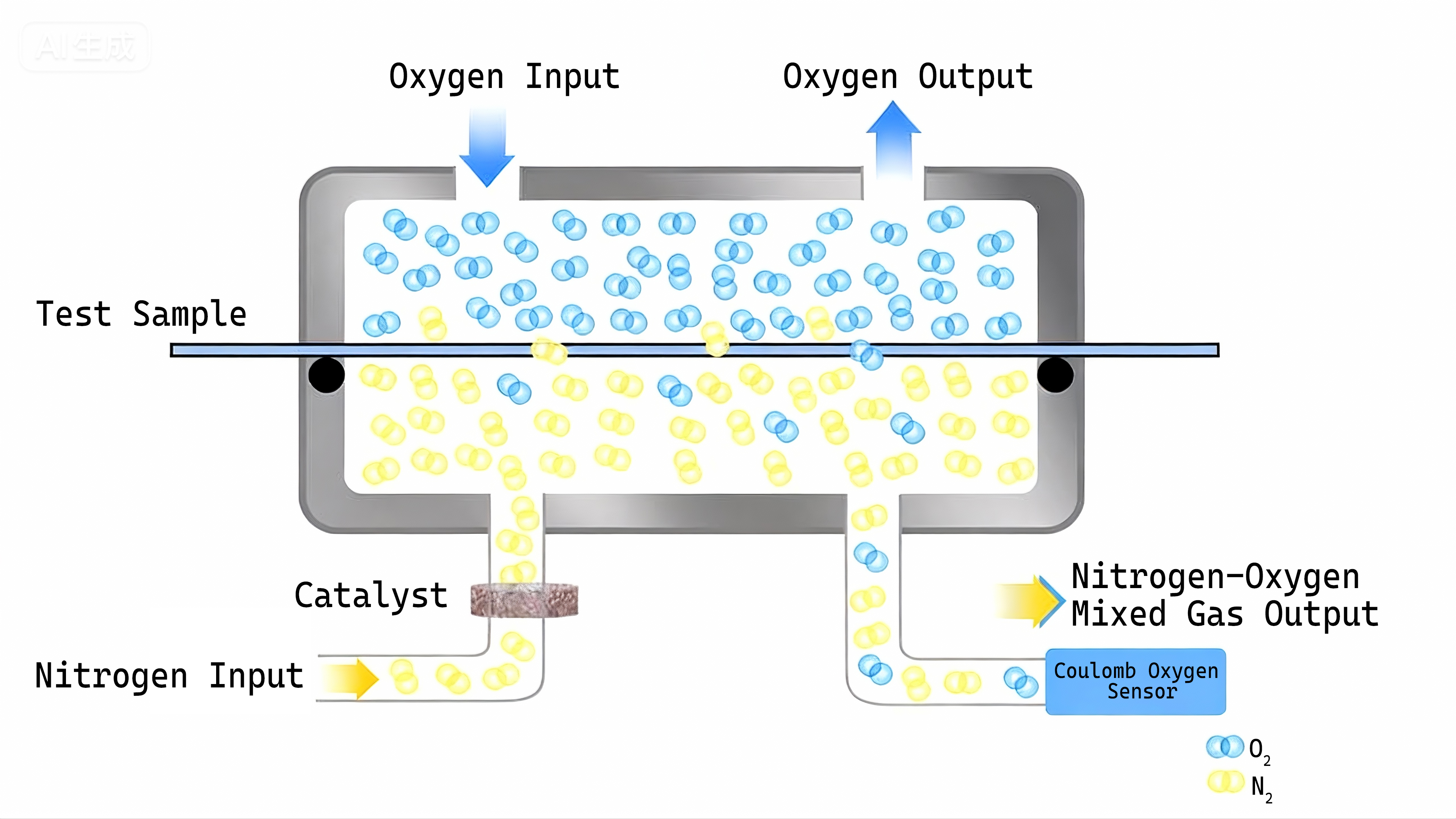

                           Schematic diagram for Coulometric sensor method



Standards

GB/T19789YBB00082003ASTM D3985ASTM F2622ASTM F1927ASTM F1037ISO 15105-2JIS K-7126-BDIN 53380-3



Specification

Item

Technical Parameters

Test range

0.01~1000 cm3/(m2·24h·0.1MPa)

Resolution

0.0001 cm3/(m2·24h·0.1MPa)

Temperature range

15~45

Temperature accuracy

±0.1

Humidity range

0%RH5~90%RH100%RH

Humidity accuracy

±2%RH

Test area

50.24 cm2minimum 0.785 cm2 optional customization

Sample size

Φ100 mm

Sample thickness

3 mm

Number of samples

1piece

Carrier gas pressure

≥0.1 MPa

Pneumatic pressure



0.3 MPa





Features

 Patented core technology, efficient and accurate testing

High-precision imported oxygen sensor with high sensitivity, ultra-high stability and ultra-low failure rate, with a resolution of 0.001 cm3/(m2·24h).

The new pneumatic pneumatic control system, automatic clamp clamping the sample, convenient and labor-saving, excellent sealing performance.

Adopt international advanced electromagnetic temperature control technology, automatically control the temperature rise and fall, and the temperature control accuracy is 0.1 .

 Meet the test requirements of wide range and high applicability

The instrument is equipped with a single cavity, which is compact and flexible, and has high test efficiency

The measurement range is 0.02~1000 cm3/(m2·24 h·0.1 MPa), and the measurement range is wide, which can meet the testing requirements of high, medium and low barrier materials. With the addition of suitable accessories, it can measure the oxygen transmission rate of containers such as bottles, bags, and bowls.

Application



Film

Various plastic films (PP/PET/PE/PVC/BOPP/CPP, etc.), plastic composite films, paper-plastic composite films, metal composite films, co-extrusion films, aluminized films, degradable packaging films (PLA/PBAT/PBS) etc.) Oxygen transmission rate test of film-like materials



Sheet

To test Oxygen transmission rate of solid pharmaceutical hard sheet (PP/PVC/PTP, etc.), metal composite sheet, rubber sheet and other sheet materials



Medicinal stickers, warm stickers

To test Oxygen permeability of medical plaster therapy patch, warm patch, dysmenorrhea patch and other patches



Hygiene products

To test Oxygen permeability of sanitary napkins, pads and other sanitary products



Paper, cardboard and composites

To test Oxygen permeability of coated paper, carbon paper, silicone paper, aluminized paper, paper-aluminum-plastic composite sheet and other paper, cardboard



Package

To test Oxygen permeability of wine bottles, cola bottles, peanut oil barrels, Tetra Pak packaging, vacuum packaging bags, three-piece cans, cosmetic packaging, toothpaste tubes, jelly cups, yogurt cups and other plastic, rubber, paper, paper-plastic composite, glass, metal bottles , bag, can, box, barrel
