GBB-F1 Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials. It is applied to quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry and so on.

Product introduction GHH universal material testing machine is theGuangzhou international r&d team based on GB, JIS, ASTM, DIN and other standards and market demand to upgrade the mechanical properties of new testing machine, suitable for all kinds of metal, non-metallic materials tensile, stripping, heat sealing, tearing, piercing, compression, bending and shear test, and then calculate the material parameters such as fracture strength, elastic modulus, It can also be used in the medical industry of syringe piston sliding, body tightness test verification. GHH universal material testing machine has a flexible interface and control mode, can do stretching, peeling, and other tests, speed, thickness, clamping distance multi-parameter variable setting; The measuring accuracy can reach 0.5 level; The whole process is controlled by computer, open data structure; The core adopts imported parts, loaded with high-precision ball screw; Control measurement unit, can choose the built-in or external type, with perfect limit protection, overload protection, emergency stop and other safety protection functions. GHH universal material testing machine is suitable for plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber and other materials of all kinds of physical and mechanical properties test for material development, is the physical property test, teaching research, quality control and other indispensable testing equipment.   Test principle Will be clamped specimen in tensile machine fixture between two chuck, two clip do relative movement, through strength sensor and the machine is located in the moving clamp head built-in displacement sensor, collected test force value change and displacement in theprocess of change, to calculate the sample drawing (tensile strength, elongation at break and the elastic modulus of performance indicators, etc.   Standard JJG 139, ASTM D828,ASTM E4, ASTM D882,ASTM D1938,ASTM D3330,ASTM F904,JIS P8113   Specification   Item  Technical Parameters Measuring Force Range 0～3000 N (Multiple groups of sensors within 20000 N are available for selection) Measuring Force Accuracy Within ±0.5 %FS Test Speed 0~500 mm/min (Stepless speed change) Speed Accuracy Within ±1% of the indicated value Displacement Measurement Accuracy Within ±0.5% of the indicated value Effective Test Stroke 1000 mm Elongation 1100% Effective Test Width 30 mm Force Value Resolution 0.001 N Displacement Resolution 0.001 mm Specification Dimensions L×W×H: 750 mm×500 mm×1800 mm Weight 150 kg Power 600 W Power Supply AC 220 V, 50 Hz Application     Plastic film It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncturing,  compression,  bending and other performance tests of plastic films,  composite materials,  flexible packaging materials,  tapes and other products. Composite film bag It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncture,  compression,  bending and other performance tests of composite films,  co-extruded films,  composite bags,  retort bags,  aluminum-plastic composite bags and other products. Paper It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of paper,  kraft paper,  facial tissue,  toilet paper and other products. Medical Patches It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of medical cold compress,  plaster and other products. Pressure Sensitive Tapes It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of cellophane tape,  electrical insulating tape,  medical zinc oxide adhesive tape and other products.   Features Flexibility and variety of control Supports stretching, peeling, heat sealing, tearing, puncture, compression, bending, shear and other tests, speed, thickness, clamping distance variable parameters set, optional pneumatic fixture, suitable for a variety of fixtures.   High measurement accuracy The test measurement accuracy can reach 0.5 level, high sampling rate (100 times/second), wide speed range, can adapt to high and low speed test, make the test data more accurate.   Imported core components, safe and reliable operation  Using high-precision ball screw loading, the loading is stable, the testing machine has a long life, good long-term stability and energy saving;  A plurality of load/deformation measurement subchannels are proposed, which support multiple sensor expansion measurement. A fully digital control system with imported AC servo system and motor can control the displacement zero flutters.   It has improved safety protection functions such as limit protection, overload protection, emergency stop, etc.  Double column table structure, good rigidity, control measurement unit can choose built-in type (simple appearance, save space) and external type (easy to upgrade, maintenance and separate from the microcomputer operation).   Intelligent operating system  According to the computer system design of the new version of GMP appendix, the test process parameters are flexibly set, and the function of audit tracing (test tracing, log tracing) is provided, which meets the requirements of data traceability and ensures the security and integrity of the test data. You can set different levels of system operation rights.  Intelligent Statistical analysis, support multiple data standard deviation analysis. At the same time, the system can be expanded, such as access to laboratory LIMS system.  Personalized test reports are set on demand to support multiple formats of data output.  Independent test can be separated from the computer, data can be processed automatically, and a built-in micro-printer can print data in real time. The instrument is equipped with computer interface, can also be connected to the computer online detection.   Laboratory intelligentIoT platform It can be connected to the Internet of Things platform to realize digital network management:  Remote login to theIoT platform can be performed by directly accessing the software interface of the instrument.  All experimental data can be viewed anywhere by simply logging in to the platform;  Unified management of experimental data of all instruments in the interface of things platform can be achieved.  A complete laboratory management process can be realized;  One-click application for after-sales service, and one-click application for relevant accessories; After-sales staff can provide remote after-sales service through the system. There is a complete after-sales record on the platform, which is convenient for after-sales staff to provide high-quality online service;  Customers may download the required instrument materials, documents and operation videos on the platform by themselves.

Product Introduction GBB-C vertical heat seal tester can accurately measure the heat sealing temperature, heat sealing time, heat sealing pressure, and other heat sealing performance parameters of plastic packaging vertical bags, paper-plastic composite vertical bags and metal composite vertical bags(boxes). The heat sealing performance of samples of different materials are different. And the best heat sealing conditions can be accurately obtained through the determination of their heat sealing performance parameters.   Testing Principle Put the sample on the lower tray of the instrument, adjust the appropriate height according to the size of the sample, set a certain sealing temperature, time and pressure as required, and start the instrument with one key. The fixture on the instrument will heat seal the sample according to the setting parameters. Under the manual state, step on the foot switch, and the heat sealing knife is pressed. The heat sealing time is determined by the value set by the time control. In the automatic state, the upper and lower heat sealing knives of the heat sealer will automatically heat seal repeatedly according to the set time. Standards ASTM F 2029 Specifications Item  Technical Parameters Temperature Range Room temperature ～ 250℃ Temperature Control Accuracy ±1℃ Hot Sealing Time 0.1s ～ 99.99 h Hot Sealing Pressure (0~1) MPa Hot Sealing Surface Upper and lower sealing knives: 300×5.5 mm, smooth; lower sealing bar with silicon pad Operation Mode Two modes: automatic and manual, with external cylinder Gas Source Compressed air Overall Dimensions 730(L) mm×400(B) mm×535(H) mm Weight 33.8kg Power 1200 W Power Supply AC 220V, 50Hz     Characteristics u High progress imported quality sensor, quality assurance Original imported temperature sensor, wide temperature control range, high sensitivity, temperature control accuracy of ± 1 ℃, it has ultra-high stability and ultra-low failure rate. u Independent control of heat sealing temperature The rear of the heat sealing knife is equipped with a temperature sensor, and the temperature control of the inner and outer sealing knives is independent and set separately. u Personalized test selection Manual testing and automatic testing are free to choose. The automatic mode is time-saving and convenient, and the repeatability is fully automatic for heat-sealing the sample; the manual mode is equipped with a suitable foot switch, step on the foot switch, the heat sealing knife is pressed, and the safety protection is easy to operate. u New air drive system The drive system consists of a pressure gauge, a pressure regulating valve, and a cylinder. After the compressed air is introduced, the pressure is adjusted through the pressure valve, the air pressure can be accurately locked, and the heat sealing clamp is pneumatically driven, which is convenient and efficient. u Wider range of customized services The anti-sticking function of the heat sealing knife can be upgraded as needed, experience upgrade, and it is more intuitive and convenient to determine the best heat sealing conditions. The shape, size and smoothness of the sealing knife heat cover can be customized to meet different scientific research needs.   Application     Plastic stand up pouch Paper plastic stand up pouch     Aluminized stand up pouch Milk Boxes

This Series machine can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel (can 90 degrees and 180 degrees) and other mid-force mechanical test（ 5KN,10KN,20KN,optional ） , such as tires, belt, shoes, plastic, film, acrylic,FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials,waterproof materials, fibers, textiles, wire and cable, paper, gold foil,ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

  Application used to detect the gloss of plastic film, paper, ink, adhesive, etc. Multi-point measurement and data processing can be performed on the sample, and parameters such as average value, standard deviation and coefficient of variation can be printed directly. The machine has high precision and good stability, and can measure the glossiness of flat products such as paint, paper, plastic, ceramic, stone and metal.   Feature  Full-function intelligent design, light touch key operation.  Automatic measurement and manual measurement function.  For single point or no more than 10 points measurement, calculate the average value, root mean square, coefficient of variation and print out the result.   Standards  Angle International Standard Chines Standard Application 20 ISO-2813 ISO8254 GB9754 GB8807 Coating Plastic 20 TAPPI-T653 ASTM-D1834 GB8941.1 Paper 45 ISO-2767 GB8941.2 Metal compound paper 45 ASTM-C346 ASTM-D2457 GB8807 Ceramics、Plastic 45 JIS-E8741   Coating 60 ISO-2813 ASTM-D2457 GB9754 GB9966 GB8807 Coating Stone Plastic 75 TAPPI-T480 GB9841.3 Paper 85 ISO-2813 GB9754 Coating   Specifications Item Specification Test range 0-199.9 Gloss units Precision ±1.0 Gloss units Stability Not more than 0.5 gloss unit / every 30 minutes Repeatability Not more than 0.5 gloss unit Measuring probe size 180mm×100mm×50mm Power 25w/ 220vAC，50HZ

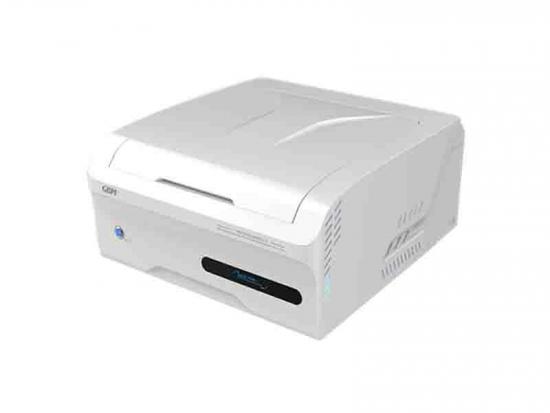

  Introduction GBPI haze meter can easily achieve ASTM D1003 non-compensation method, ISO 13468 compensation method, full light transmittance,haze test.Open sample bin can be vertically and horizontally tested to accommodate more samples to be tested.The YH1200 haze meter uses a PD array detector to meet the CIE V(λ)2 degree visual response. The compensation method can be used to measure the light transmittance and haze with high precision and repeatability.   Technical Advantage 1.Double standard ISO&ASTM Able to meet the test standard requirements of different users, in accordance with ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105,JIS K7361,JIS K 7136   2.Easy to operate, faster and more accurate measurement The YH1200 haze meter is equipped with a large-size touch screen for easy operation.With a PD array detector, CIE V(λ)2 degree visual response enables high precision and repeatable transmittance and fog measurements.USB data output device for docking with laboratory system.   3.Dynamic measurement Independent light source detector and temperature sensor, constantly monitor light source and environmental change, ensure the reliability of test data.   4.With compensation port, so that the measurement data more accurate Meet ASTM D1003 non-compensation method, ISO 13468 compensation method, full light transmittance, fog test, provide more accurate test results.   5.Easy to measure and widely applicable to samples Open measuring area, vertical and horizontal testing, suitable for more samples to be tested.   6.Quality control software It provides powerful software for measuring and analyzing fog and light transmittance, which is suitable for quality monitoring and tabulated management of fog and light transmittance data in various industries.The management of users will be digitized at the PC end, the difference of fog and light transmittance will be compared, and the test report form will be generated to facilitate customer customization and management.   Application YH1200 haze meter is widely used in glass processing, plastic processing, film processing, screen processing, packaging industry, liquid pharmaceutical analysis and other aspects.   Specification Product Model GBPI Haze Meter Optical Geometry Transmittance：0/D (Parallel light illumination, diffuse viewing); Conform to the standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105，JIS K7361,JIS K 7136 Characteristic The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance,haze test. Open measuring area for vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries are widely used in transmittance,haze detection. Integrating Sphere Size Φ154mm Light Source 400nm to 700nm, combined LED light Spectrophotometric Mode / Sensor The PD array detector satisfies CIE V(λ)2 degree visual response Wavelength Range / Wavelength Interval / Semiband Width / Measurement range 0~100% Measuring Aperture Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) Sample Size Thickness ＜170mm Color Space / Color Difference Formula / Other Colorimetric Index Haze(ASTM D1003/1044,ISO13468),Transmittance T(ISO),Transmittance T(ASTM) Observer Angle 2° Illuminant D65,A,C Displayed Data PASS/FAIL Result Measuring Time About1.5s Resolution 0.01unit Repeatability Φ20mm,within 0.05 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.) Inter-instrument Error Φ20mm,with 0.4 (After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.) Dimension L*W*H=290X211X511mm Weight About7.6kg Power AC 24V, 3A Power adapter power supply Illuminant Life Span 5 years, more than 3 million times measurements Display 7-inch TFT color LCD, Capacitive Touch Screen Data Port USB, Print serial port Data Storage Standard 1000 pcs,sample 20000 pcs Language Simplified Chinese,Traditional Chinese,English Operating Environment 0~40℃（32~104°F） Storage Environment -20~50℃（-4~122°F） Standard Accessory Power Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box, measuring aperture. Optional Accessory Micro-printer,Test fixture, standard haze sheet, foot switch Note: The specifications are subject to change without notice.
